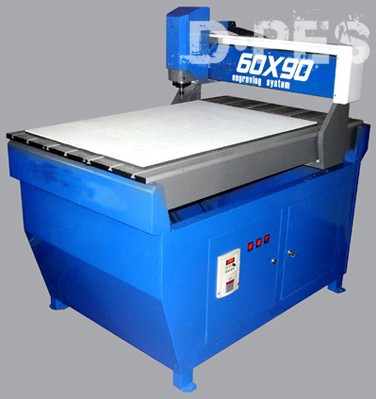

Chixing Series of Advertising machines_YH6090
|
Items
|
Parameters
|
Working area(mm)
|
X
|
600
|
|
Y
|
900
|
|
Z
|
Greater than 100
|
Table Structure
|
Table Surface
|
T-slot with Polyester covers
|
Transmission system
|
X
|
Ballscrew from Taiwan but with German technology
|
|
Y
|
Ballscrew from Taiwan but with German technology
|
|
Z
|
Ballscrew from Taiwan but with German technology
|
Lead rail system
|
X
|
Linear round guide rail
|
|
Y
|
Linear round guide rail
|
|
Z
|
Linear round guide rail
|
Spindle
|
Power
|
1.5 kw
|
|
Rotating Speed
|
0-24000 rpm (Optional air-cooling spindle with 18000 rpm)
|
|
Cooling Type
|
Water-cooling
|
|
Origin
|
China
|
|
Collet diameter
|
3/4/6/12.7mm
|
About drive systems
|
X
|
stepper
|
|
Y
|
stepper
|
|
Z
|
stepper
|
|
Stepper motor and driver
|
Made in China
|
|
Servo motor and driver
|
Panasonic/Yaskawa (optional)
|
Dust-protection system for X,Z
|
For your option
|
Dust collector system
|
For your option
|
Tool sensor
|
Option
|
Machine body
|
Square tube
|
Software environmant
|
Windows 98/2000/XP
|
Control System
|
Ncstudio control system under Windows OS [DSP is optional]
|
Data reading mode
|
line by line
|
Compatible file formats
|
G code ; *.u00 ; *.mmg ; *.plt .
|
Compatible CAD/CAM Softwares
|
Ucancam V8 / Type3 / Artcam /
|
Working Voltage
|
AC220V 50Hz
|
Table size
|
720*1150mm
|
Precision
|
0.005mm
|
Max speed
|
5.5m/min
|
Max engraving speed
|
3.0m/min
|
Max feeding height
|
100mm
|
Work-holding devices
|
by fixture
|
Interface type
|
USB
|
Power(not include the spindle)
|
300W
|
Cutting thickness of material
|
Depends on the materials
|
Warranty guarantee
|
One-year after-sale services
|
