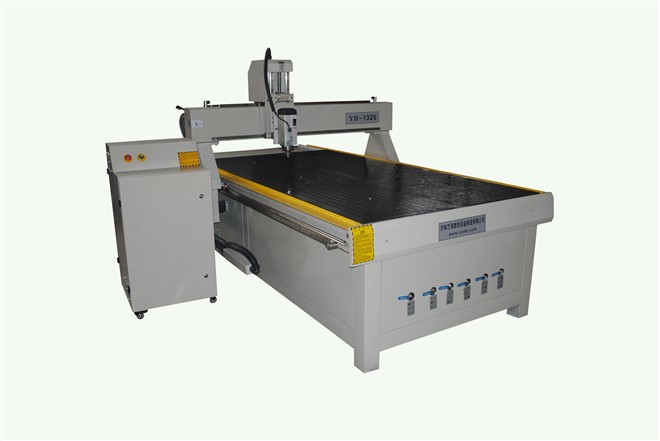

Equipment Features
1. Integrally cast lathe bed,solid and stable,high rigidity and long service time.
2. Imported high accuracy ball screw ensures more stable movement and high accuracy.
3. Aluminum decorated appearance,beautiful shape and magnificent looking.
4. Water-cooling brushless spindle,low noise,vigorous cutting strength and long time mass processing.
Technical-parameters
Model
|
YH1530
|
YH2030
|
YH2040
|
Option
|
XY Working area
|
1500*3000mm
|
2000*3000mm
|
2000*4000mm
|
|
Z Working area
|
200mm
|
200mm
|
200mm
|
|
Table size
|
1680*3500mm
|
2180*4000mm
|
2180*4500mm
|
|
Spindle
|
4.5kw water cooling
|
4.5kw water cooling
|
4.5kw water cooling
|
Italy HSD
|
Max feeding
|
>35m/min
|
>35m/min
|
>35m/min
|
|
Work-holding
|
by suction
|
by suction
|
by suction
|
|
Processor
|
DSP/Frequency 100MHz
|
DSP/Frequency 100MHz
|
DSP/Frequency100MHz
|
|
Interface
|
USB
|
USB
|
USB
|
|
Command
|
G code *.u00*.mmg*.plt
|
G code *.u00*.mmg*.plt
|
G code *.u00*.mmg*.plt
|
|
Surroundings for software
|
DSP
|
DSP
|
DSP
|
Ncstudio control system under Windows OS.
|
Power(not include the spindle)
|
2500W
|
2500W
|
2500W
|
|
Power
|
AC 380V/50Hz
|
AC 380V/50Hz
|
AC 380V/50Hz
|
|
Main axle power rate
|
4.5KW
|
4.5KW
|
4.5KW
|
3.0/3.5/6.0KW/Water/Air-cooling(Option)
|
Main axle rotating speed
|
0-24000 rpm
|
0-24000 rpm
|
0-24000 rpm
|
(Air-cooling spindle with 18000 rpm)
|
Work Mode
|
Stepper
|
Stepper
|
Stepper
|
Servo
|
