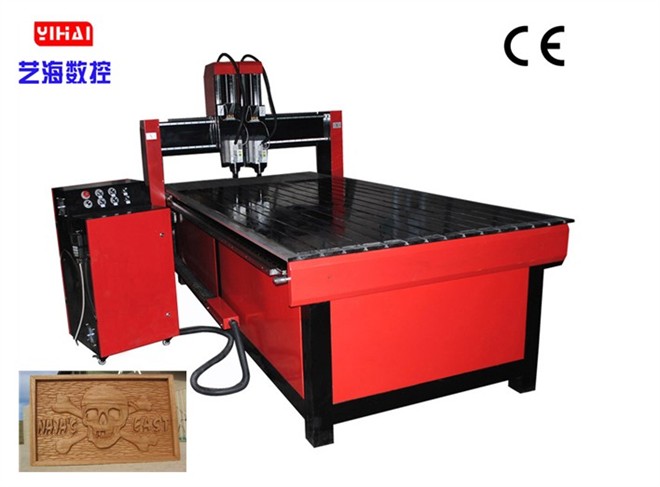

Equipment Features
1.The distance between heads can be adjusted according to the working pieces being processed
2.equipped with 2 to 4 heads; the machine one time can complete the works done by several machines, to save cost and improve the working efficiency
3.it is possible to start any one of the heads only
4.spindle power is selected according to customer's requirements
5.rotary attachment is optional, which enable the machine to engrave on column work pieces like table leg
6.especially firm structure and special design on details make the machine to achieve the best performance results
Technical-parameters
Model
|
YH-1325S
|
Option
|
XY working area
|
1300*2500mm
|
<2000mm*4000mm
|
Z working area
|
200mm
|
<450mm
|
Table size
|
1480*1840mm
|
|
Max feeding
|
>35m/min
|
|
Work-holding
|
By fixture
|
|
Processor
|
DSP/Frequency100MHz
|
|
Interface
|
USB
|
|
Command
|
G code*.u00*.mmg*.plt
|
|
Surroundings for software
|
DSP
|
Ncstudio control system under Windows OS.
|
Power(not include the spindle)
|
3.0KW Italy HSDair cooling
|
|
Power
|
AC380V/50Hz-60Hz
|
|
XY transmission
|
HIWIN linear rail and
High accuracy gear rack
|
|
Z transmission
|
Germany ball screw
|
|
Main axle rotating speed
|
0-18000rpm
|
(Water-cooling spindle with 24000 rpm)
|
Work Mode
|
Stepper
|
Servo
|
